The product adopts monocular structured light 3D imaging technology, which mainly consists of an infrared collection unit, an infrared projection unit, and a depth calculation processor. The infrared projection unit is used to project structured light patterns onto the target scene, the infrared collection unit collects the infrared structured light image of the target, and the depth calculation processor receives the infrared structured light image and performs depth calculation algorithms to output the depth image of the target scene. The intelligent AI depth calculation processor performs a matching calculation between the pre-calibrated reference structured light image and the current collected infrared structured light image to obtain the deviation value between the pixels, and then calculates the depth value based on the deviation value and the structured light triangulation principle.

T3D1000 provides a humanized care and intelligent operation management, reduces costs for nursing homes, improves operation risk control, ensures smooth operation and improves management efficiency. It provides advanced technological means for nursing home management and builds an intelligent monitoring and prevention system, effectively compensates for the defects of traditional methods and technologies in supervision, changes passive "supervision" to active "monitoring", and effectively improves the management level of nursing homes.

Ø Adopts international-class intelligent video analysis algorithms;

Ø Employs monocular structured light 3D imaging technology;

Ø Protects user privacy, does not collect any private videos or images from users;

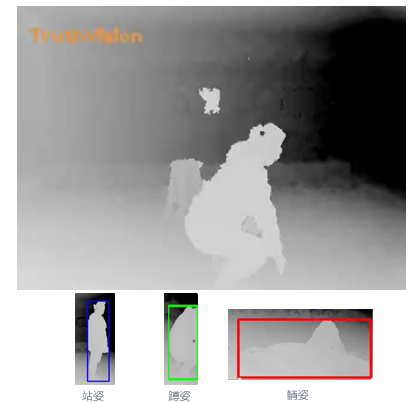

Ø Supports recognition of standing, squatting/sitting, and lying positions;

Ø Convenient installation, users can install it themselves;

Ø "Zero false negatives and low false positives" with high algorithm accuracy, at the top level domestically and internationally;

Ø Supports platform access to management devices through SDK or ONVIF standard protocols, and seamless integration with third-party platforms;

Ø Product is designed according to industrial standards, to achieve high reliability, high stability, and long-term continuous operation requirements.

专利号：①专利号：US11607124B2，类型：发明②专利号：US11468598B2，类型：发明③专利号：US11297708B2，类型：发明④专利号：US11689697B2，类型：发明⑤专利号：US11783635B2，类型：发明⑥专利号：US11594030B2，类型：发明⑦专利号：US11403899B2，类型：发明
