IVServer 6500-48CH4U
IVServer 6500-48CH4U
Intelligent Video Behavior Server
Get more information
  • Fully self-developed algorithm
  • The algorithm has high accuracy
  • Fully compatible with ONVIF protocol and RTSP video streaming protocol

The intelligent video behavior analyzer is a new generation of intelligent video products with trans-generational significance independently developed by the company.

This product not only retains various advantages of embedded technology: low bandwidth for front-end analysis, fast system response, data security and virus-free; at the same time, it incorporates various advantages of the platform: flexible and compatible with multiple brands, low cost of intelligent migration, and easy operation. Upgrade, security backup double guarantee.

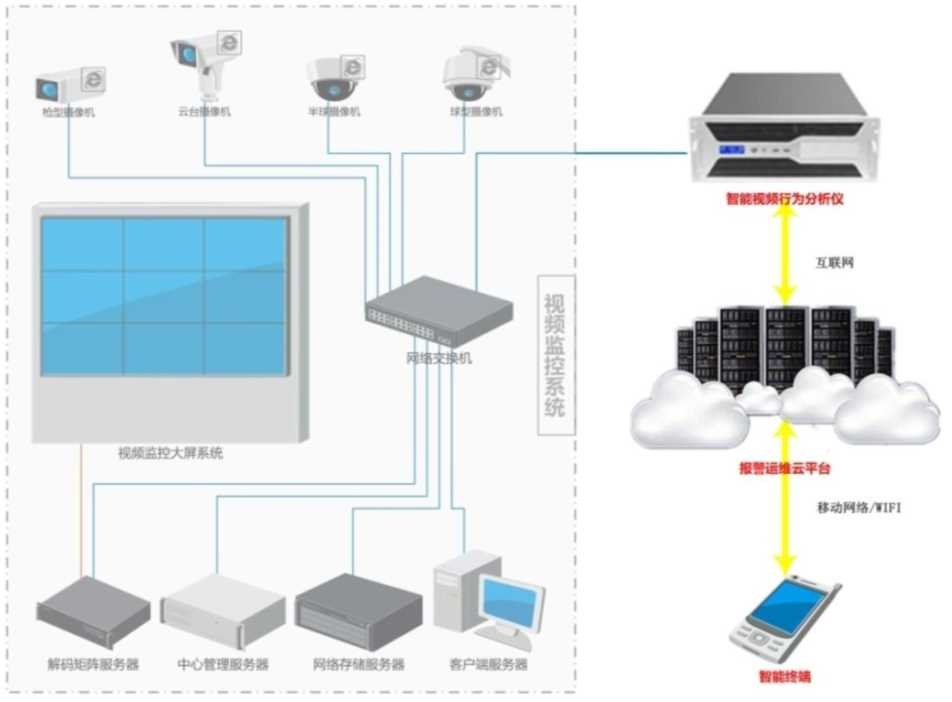

This product is also a high-performance embedded media gateway device that integrates core functions such as streaming media protocol conversion, streaming media distribution services, and multi-channel video decoding. The video content is formatted and video converted, decoded and output. Combined with cloud platform services, mobile video surveillance can be realized. The server can be used independently, or through flexible networking, it supports a large number of users and multiple concurrent server clusters.

MOre Put away
Consult now

The intelligent video behavior analyzer not only retains the advantages of embedded technology: low bandwidth for front-end analysis, fast system response, and data security without viruses; it also integrates various advantages of the platform: flexible and compatible with multiple brands, low cost of intelligent migration, and easy operation. Upgrade, security backup double guarantee.

This product is also a high-performance media gateway device that integrates core functions such as streaming media protocol conversion, streaming media distribution services, and multi-channel video decoding. The content is formatted and video converted, decoded and output. Combined with cloud platform services, mobile video surveillance can be realized. The server can be used independently, or through flexible networking, it supports a large number of users and multiple concurrent server clusters.

Ø The intelligent video behavior analysis algorithm has been independently developed and has obtained multiple international invention patents.

Ø The algorithm has high accuracy with "zero missing alarm and low false alarm".

Ø The rules are comprehensive, targeted, applicable, highly sensitive, and with high recognition rate.

Ø The alarm delay is less than 1s.

Ø It supports various monitoring devices and platforms such as Hikvision, Dahua, Huawei, etc.

Ø It is fully compatible with the ONVIF and RTSP protocol.

Ø Supports multiple video decoding such as H.265/H.264/MJPEG.

Ø Supports mobile systems to play video using 3G/4G networks.

Ø Provides flexible third-party interfaces for secondary development.

Ø The platform supports management devices to access via the SDK or the ONVIF protocol.

Ø The product is designed according to industrial standards to achieve high reliability, stability, and long-term continuous operation requirements.



Product model

IVServer 6500-48CH4U

Product name

Intelligent Video Behavior Analyzer

CPU

Intel I7 12th generation12 cores 20 threadsprocessor ,25M cache

Memory

32GB DDR4 3200MHz´2

GPU

Professional GPU with 8G memory and 2560 CUDA Cores

Hard disk

2TB, Surveillance-grade

Performance

Video input

48 channels

Intelligent analysis

48 channels

Intelligent functions

perimeter intrusion

blockage of business operations

courier recognition

area intrusion

mobile vending

shared bike recognition

water intrusion

illegal parking

muck truck recognition

lingering loitering

Illegal retrograde

Cat and dog recognition

customer entry

Illegal dumping

customer flow density (heat map)

customer exit

illegal lane change

video occlusion

region density

littering

video loss

region area

uncivilized dog walking


gathering of people

children without supervision


Video

Encoding

H.265/H.264/MPEG4/M-JPEG

Network interface

RJ45 Ethernet

Frame rate

125/30 frames/s

Configuration

Local or remote

Transport protocols

TCP/UDP

Application Protocols

ONVIF/HTTP/RTSP

Remote upgrade

Support

Dimensions

450mmL×482mmW×178mmH, with screen

Power consumption

600W

Watchdog anti-crash

USB 2.0

Auto Power-On

Support

Environment conditions

Operating temperature: -10℃ to 60℃ Humidity: 0% to 90% non-condensing
