This product is a new generation of temperature measuring face recognition all-in-one machine independently developed by the company. It adopts the latest face recognition algorithm and uses the uniqueness of facial features for accurate recognition to confirm the personnel's access permission. The terminal is equipped with an embedded Linux operating system, MTBF＞50000H. It is equipped with medical-grade sensors that can achieve a temperature measurement accuracy of ±0.3℃ and multiple warning modes. It also supports the integration of non-contact temperature detection, attendance check-in and other functions with the access control system. It can be widely used for personnel verification , recognition and information management in densely populated scenes such as communities, buildings, supermarkets, etc., fully realizing full scenario applications.
It can be used to control pedestrian gate, and also for access control management. It supports multiple verification methods such as face and ID card (optional), smart IC card (optional), QR code (optional), etc.
The product provide a management system for users to query the face and historical data. It can be equipped with various visitor registration methods such as WeChat mini-programs, mobile app, and self-service visitor terminals for identity verification, to adapt to different scenarios.
Ø Dual-core processor, 1GB memory and 8GB EMMC,
Ø Embedded Linux system with MTBF > 50000H
Ø Face recognition accuracy of ≥99.9% with recognition speed <0.2s.
Ø 30,000 face comparison libraries and 8,000 recognition records.
Ø Binocular anti-counterfeit functionality.
Ø Accurately recognize faces in complex lighting environments (strong light, backlight, shade, and backlight).
Ø Capacitive multi-touch IPS screen (optional)
Ø Measurement distance of ≤40cm, temperature accuracy of ±0.3℃.
Ø European imported medical-grade sensor
Ø Supports multiple language versions and customization according to customer needs
Ø Supports mask recognition and reminds users if they are not wearing a mask.

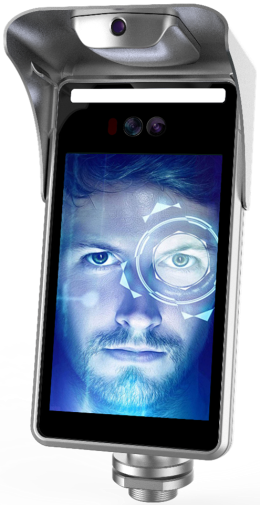

8 inch Temperature Measuring Face Recognition All-in-One Machine
dual-core processor,1GB memory,8GB EMMC
1/2.8" Progressive Scan CMOS
Support, the voice content can be customized
80,000 capture records

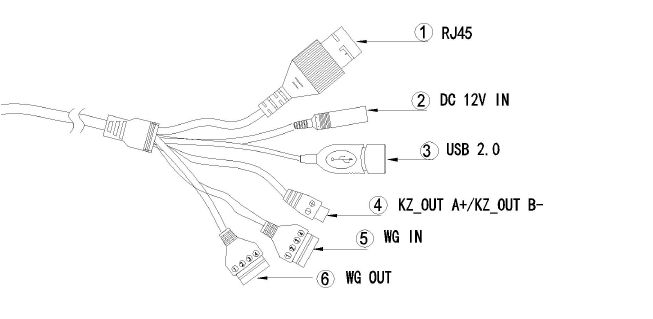

1 digital out, other GPIO ports can be customized with lines
1 RJ45 10M/100M,1000M(Customizable)
1 Wiegand in，1 Wiegand in out
1USB as device
binocular camera，visible light and near-infrared，living body dynamic
Color: 0.01Lux@F1.2(ICR) black & white:0.001Lux@F1.2(ICR)
Wide dynamic range
120db，ISP algorithm face local exposure
H.265 Main Profile/H.264 BP/MP/HP/MJPEG
Remote Device Upgrade
Public and local network
0 to 90% relative humidity, no condensation
Salt mist level
Contact ±6KV, Air ±8KV
Pole hole diameter
8 inch IPS high-definition screen
