Intelligent electronic work card TVT808
TVT808
Intelligent electronic work card
Get more information
  • Lightweight, compact, dustproof and waterproof
  • Support voice time announcement, voice call, track playback and other functions

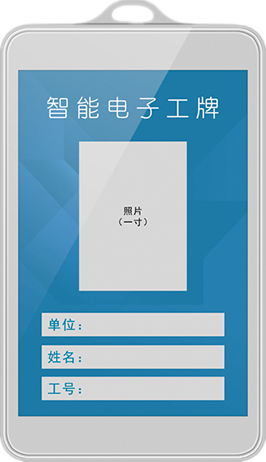

The smart electronic work card TVT808 is a 4G smart electronic work card designed for intelligent management of personnel. It is light, compact, dust-proof and waterproof, and can be carried with you when you go out. The terminal adopts intelligent positioning method, can stand by for up to 7 days, and supports functions such as voice time announcement, voice call, track playback, etc., and can be widely used in field inspection, personnel monitoring and other fields.

MOre Put away
Consult now

The TVT808 is a 4G intelligent electronic work card designed for personnel smart management. It is light, compact, dust-proof and waterproof, and can be carried with you when you go out. The terminal adopts intelligent positioning mode and can standby for up to 7 days. It supports functions such as voice reporting, voice calls, and trajectory playback, and can be widely used in fields such as field inspection and personnel monitoring.


Ø Multi-mode positioning, receiving GPS, BDS, and LBS positioning signals at the same time, making personnel work trajectory clear at a glance and providing data basis for performance assessment;

Ø When personnel wearing the electronic work card enters the work area, they can check in with one click and upload location information to the management platform;

Ø Through the platform, you can set the SOS number, and by pressing the corresponding button, you can easily achieve one-click distress and upload the alarm information. The voice broadcast combined with the location information makes it easy for operation personnel to remotely dispatch and manage, maximizing emergency response ability;

Ø Intelligent power-saving design with large capacity battery, with a battery life of up to 7 days, avoiding the trouble of frequent charging.


Product model

TVT808

Product model

Intelligent Electronic Work Card

Dimensions

101mm×60mm×11mm

Communication Frequency

LTE-TDDB34/B38/B39/B40/B41

LTE-FDDB1/B3/B5/B8

GSM900/1800MHz

Communication Carrier

China Telecom/ China Mobile / China Unicom, full network compatibility.

Positioning Mode

WIFI + BeiDou + GPS + Base Station

Vibration Detection

Support, with adaptive sleep for power saving

SIM card type

Nano

Charger Requirements

DC5V 1A or above

Internal Battery

>=1800mAH

Charging Current

800-900mA, fully charged in about 2-3 hours

Working Current

<=150mA

Standby Current

<=8mA

Working Temperature

-20℃75℃

Storage Temperature

-40℃80℃
