Smart duty terminal TVB6000
TVB6000
Smart duty terminal
Get more information
  • Industrial IP68 waterproof and dustproof design
  • Public network cluster intercom, HD video intercom

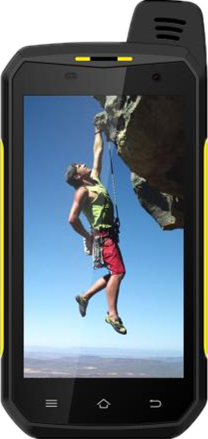

The smart duty terminal TVB6000 adopts a 5.0-inch high-definition large screen, 4+64GB memory, an octa-core processor, and an industrial IP68 waterproof and dust-proof design. It is a mid-to-high-end explosion-proof smart duty terminal. Install network intercom, alarm operation and maintenance handling app, which can realize public network cluster intercom, high-definition video intercom, video image transmission, work order handling and other functions.

MOre Put away
Consult now

The TVB6000 Smart Duty Terminal features a 5.0-inch high-definition screen, 4+64GB memory, and an eight-core processor, and is a mid-to-high end explosion-proof intelligent duty terminal with industrial IP68 waterproof and dustproof design. By installing the network intercom and alarm operation and disposalAPP, it can achieve functions such as public network cluster intercom, high-definition video intercom, video image transmission, and work order disposal.


Ø 5.0-inch screen, suitable for one-handed operation. Adopts high-light bright industrial screen, brightness up to 480nits, visible in sunlight, clear and visible outdoors;

Ø Adopts the super-fast intelligent MTK6755 octa-core 2.0G processor, supports China Mobile, China Unicom, and China Telecom full-mode 4G, 5000mAh polymer battery, can work continuously for 10-12 hours, normally used for 1-2 days, and also supports dock charging function;

Ø Equipped with professional intercom software and alarm operation and maintenance order disposal APP, supports global intercom, single call main call, draw circle to build group, real-time location, video upload, track inspection, electronic fence, NFC inspection, creating new orders/events and order assignment, alarm receipt, disposal, review, and other functions;

Ø With IP68 level waterproof and dustproof, and double-color injection molding material.


Product model

TVB6000

Product name

Intelligent Duty Terminal

dimensions

145mm×75mm×22mm

Product material

295g

Screen

Size5.0 inch

Resolution720×1280

Brightness450nits

Touchscreensupport

Camera

Front8MP

Rear16MP

Battery

5000mAh

Performance

OSAndroid 9.0

CPU2.0GHz, octa-core processor

memory4G+64G

network

GSMB2/B3/B5/B8

WCDMAB1/B2/B5/B8

TDSB34/B39

LTE-FDDB1/B3/B5/B7/B8/B17/B20/B66/B71

LTE-TDDB38/B39/B40/B41

CK2BC0

Data

BluetoothBluetooth4.2

WiFiIEEE 802.11 a/b/g/n

NFCSupport

FMSupport

U diskSupport

StorageMicro-SD card, don’t support hot swap

Sensor

G-SensorSupport

L-SensorSupport

Distance sensingSupport

Proximity sensorSupport

Compass

Support

Speaker

Front speaker diameter 18+;

Rear speaker with SMARTPA

Flashlight

Support

NFC

13.56MHz ISO14443A and 15693

Protection level

IP68
