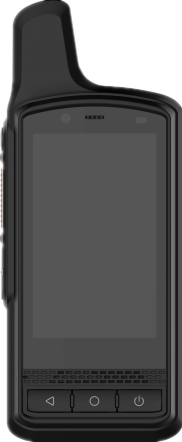

Smart duty terminal TVA310
TVA310
Smart duty terminal
Get more information
  • 2G/3G/4G full Netcom public network communication and intercom
  • Voice, image transmission, SOS, NFC patrol check-in

The smart duty terminal TVA310 is essentially a mobile phone based on Android (android 9.0) system, which can realize 2G/3G/4G full Netcom public network communication and intercom, private network 1.4GHz/1.8GHz communication and intercom. Install alarm operation and maintenance processing app, voice, image transmission, SOS, NFC patrol check-in, work order processing, 3.1-inch touch screen, 5MP front camera and 13MP rear camera, although the size is small, it has all the internal organs.

MOre Put away
Consult now

The Intelligent Duty Terminal TVA310 is essentially an Android 9.0-based phone that can achieve communication and intercom both 2G/3G/4G full-network and 1.4GHz/1.8GHz private network. By installing the alarm operation and disposal APP, it supports voice , picture , SOS, NFC patrol check-in, work order disposal, and has a 3.1-inch touch screen, 5MP front camera, 13MP rear camera. Despite its small size, it has all the essentials.


Ø Compared to ordinary intercoms, it is significantly thin and lightweight, and the highlight is the 3.1-inch color LCD screen, which is lightweight and more practical, making it easy to carry;

Ø Although small in size, it is equipped with a 2W audio power amplifier, which has noise reduction processing for both audio reception and transmission, making the sound loud and clear, especially in noisy environments;
Ø Domestic chip SOC integrated chip, high integration, small volume, good stability, low power consumption, and long battery life;

Ø Supports 2G, 3G, 4G networks of the three major operators in China (China Mobile, China Unicom, and China Telecom), equipped with professional intercom software and alarm operation and maintenance work order disposal APP, supports global intercom, single call, circle building, real-time positioning, video upload, track inquiry, electronic fence, NFC inquiry, creating new work orders/events, and work order assignment, alarm, disposal, audit and other functions;

Ø Protection level IP67, suitable for special industry users.


Product model

TVA310

Product name

Intelligent Duty Terminal

dimensions

118.5mm×58.5mm×23.8mm

Product material

Hard Rubber

Screen

Size: 3.1 inches,

Resolution: 480 x 800,

Touchscreen: Supported

Camera

Front: 5MP, Rear: 13MP, Flash: 1, Over 250LM

Battery

3.8V 3500mAh Lithium Battery, Removable

Performance

OSAndroid 9.0

CPU1.5G, Quad-core

Memory1G+8G/2G+16G/3G+32G

Storageextend to 128G

network

GSM850/900/1800/1900

WCDMA850/900/1900/2100

LTE-FDDB1/B3/B5/B7/B8/B17/B28A

LTE-TDDB34/B38/B39/B40/B41M

EVDOBC0

Data

WLAN2.4G 5.8G

BluetoothBluetooth4.1

Navigation

Built-in GPS, Supports A-GPS, GLONASS, Beidou

Interface

dataTYPE-C, support OTG

headset3.5mm

Motor

Support

Earpiece

Support

Speaker

2W

NFC

Default

Protection level

IP67 Waterproof, Dustproof, Shockproof

Storage temperature

-30℃70℃

Operating temperature

-20℃55℃
